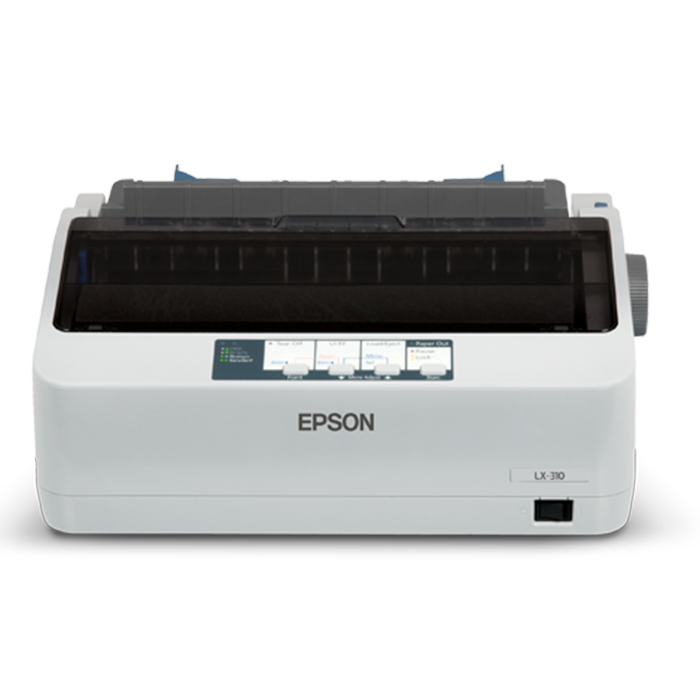

9-PIN NARROW CARRIAGE IMPACT PRINTER
Highly reliable printing with better performance
http://www.ciptamaonline.com/produk/printer-faktur/103-epson-lx-310.html#sigFreeId9f816fe035
Feature
Why The Epson LX-310? Building on its reputation as the world’s top dot matrix printer maker, Epson has introduced the Epson LX-310 as the next-generation narrow carriage, 9-pin model that replaces the legendary LX-300, featuring vastly improved speed and reliability. |
Extreme Speed The Epson LX-310 features a 128KB input data buffer memory that is double that of its predecessor. This enables it to achieve high printing speeds of up to 357 characters per second at 12 CPI. |
Improving on Legendary Reliability The Epson LX-310 also has an improved reliability rating that is an astonishing 67% higher than its predecessor that was already renowned for its dependability. The LX-310 is rated for a mean time before failure (MTBF) of 10,000 POH (power on hours) compared to the older model’s 6,000 POH. |
High Impact for Multiple Carbon Copies Achieve optimum efficiency with the LX-310’s ability to create up to a 5-part form printout (1 original + 4 copies). |
Flexible Connectivity With built-in USB, Serial and Parallel Interface options, the LX-310 is able to connect to just about any output device you need it for. |
Specification
Spesifikasi Printer | |
---|---|
Printer Method | Impact dot Matrix |
Number of Pins in Head | 9 Pins |
Print Direction | Bi-direction with logic seeking |
Control Code | ESC/P2 and IBM PPDS emulation |
Interface | USB (Bi-directional Parallel Interface (IEEE-1284 nibble mode supported), USB 2.0 (Full Speed), Type B I/F Level 2 (Option) |
Input Data Buffer | 128 KB |
Operating System | Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista® |
Printer Speed | |
High Speed Draft | 10/12/15 cpi : 347/357/390 cps |
Draf | 10/12/15 cpi : 260/312/223 cps |
High Draft Condensed | 17/20 cpi : 383/298 cps |
Draft Condensed | 17/20 cpi : 222/260 cps |
Draft Emphasized | 10 cpi : 130 cps |
NLQ | 10/12/15/17/20 cpi : 65/78/55/47/56 cps |
Print Characteristics | |
Character Table | Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15 |
Bitmap Fonts |
Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proporational |
Barcode Fonts |
EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet |
Printable Columns | |
Pitch | 10/12/15/17/20 cpi : 80/96/120/137/160 cpl |
Paper Handling | |
Paper Path | Tractor : Rear in, Top out Manual Insertion : Rear in, Top out |
Line Spacing | 4.23mm (1/6") or programmable in increments of 0.118mm (1/216") |
Paper Feeding | Standard : Friction, Push Tractor Optional : Roll Paper Holder |
Copies | Original + 4 Copies |
Ribbon Cartridge | |
Standard | Fabric Ribbon Cartridge (Black) |
Ribbon Life | Approx. 4.0 million characters (Draft 10cpi, 14 dots/character) |
Reliability | |
Mean Print Volume Between Failure (MVBF) | Approx. 20 million lines (except print head) |
Mean Time Between Failure (MTBF) | Approx. 10,000 Power On Hours (POH) (25% Duty) |
Print Head Life | Approx. 400 million strokes/wire |
Dimensi dan Berat | |
Dimensi | P(362) x L(275) x T(154) mm |
Berat | 4.1 Kg |
* Spesifikasi yang tertera dapat berubah sewaktu-waktu tanpa pemberitahuan. Silahkan hubungi Marketing untuk informasi lebih lanjut.
